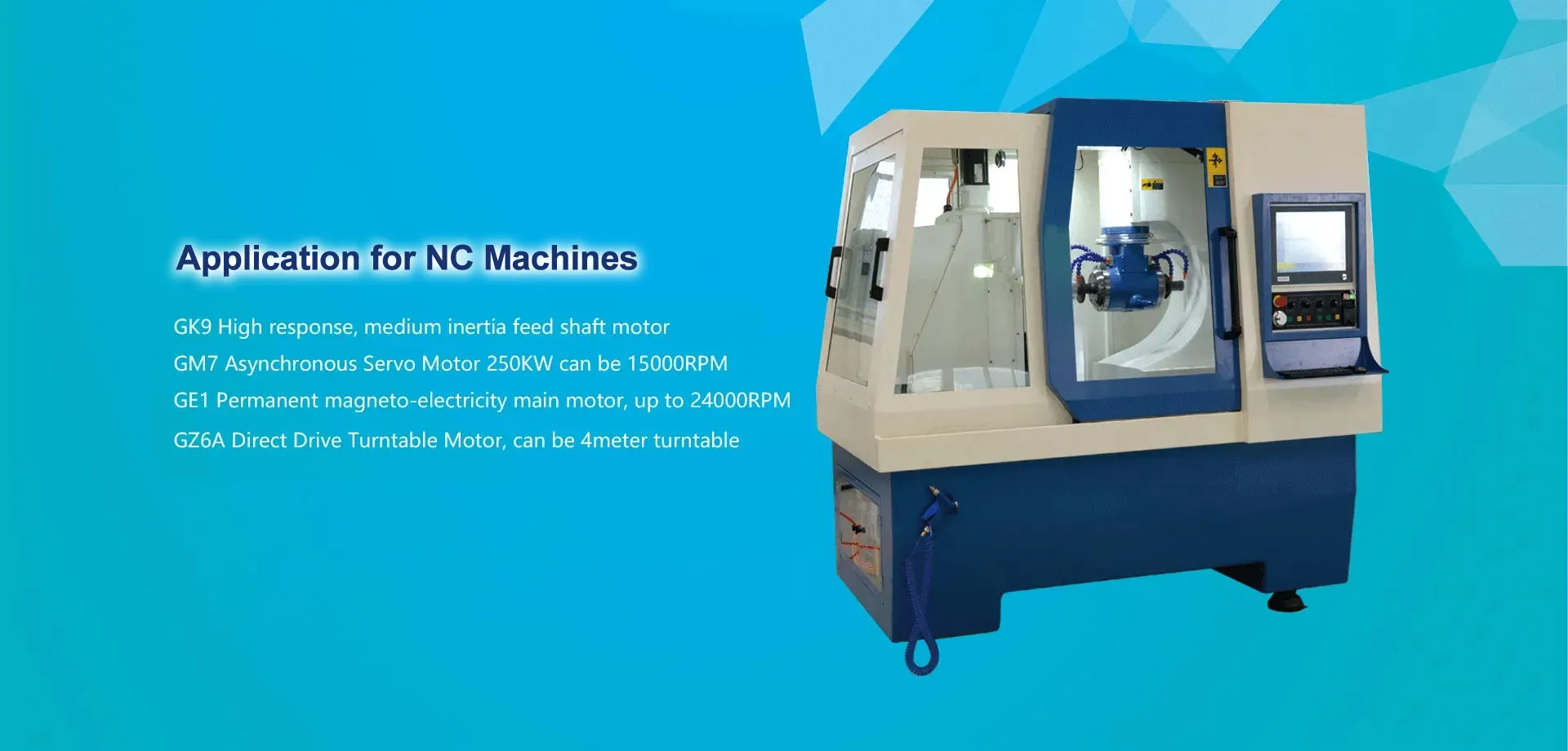

Application Scheme of NC Machine Tool
CNC Machine Tool, Carving and Milling, Five-Axis Tool Grinding, Machining Center
CNC Machine Tool, Carving and Milling, Five-Axis Tool Grinding, Machining Center
Related products
GK9 Series High Response Servo Motor
GM7 AC Servo Frequency Converter (Spindle) Motor
GZ6A Series AC Permanent Magnet Torque Motor
GK9 Series High Response Servo Motor
GM7 AC Servo Frequency Converter (Spindle) Motor
GZ6A Series AC Permanent Magnet Torque Motor
Product characteristics
Common types
Product characteristics
1、GK Series for Machine Tool Feed Shaft Motor
Feed shaft of machine tool requires fast response, high precision, working system of S3-50%. We GK series servo motors from 6Nm to 300Nm are widely used in turning, milling, planer, grinding, drilling, boring and other cutting machine tools, CNC slotting machine, engraving and milling machine, automatic angle drilling and tapping machine. It is also used in servo shear bending machine, servo turret punch, servo press, servo press.
2. GM Series Used for High Speed Spindle
Asynchronous servo spindle motor. From 2.2KW to 250KW, the maximum speed can reach 15,000 rpm, and the precision can reach U level. It has the characteristics of good low speed, fast response and wide constant power range. Matching with many spindle drivers at home and abroad, it can be used for
3. GZ Series Used in NC Turntable
For NC turntable, the accuracy can reach 1.5 seconds, and the diameter can be provided from 90 mm to 4000 mm turntable.
4. GE Series Used for Machine Tool Spindle
As a permanent magnet IPM structure, it can effectively reduce the rotor heating, thus solving the problem of the size change of the shaft heating. With special shafting design, the maximum speed can reach 24 000 rpm.
1、GK Series for Machine Tool Feed Shaft Motor
Feed shaft of machine tool requires fast response, high precision, working system of S3-50%. We GK series servo motors from 6Nm to 300Nm are widely used in turning, milling, planer, grinding, drilling, boring and other cutting machine tools, CNC slotting machine, engraving and milling machine, automatic angle drilling and tapping machine. It is also used in servo shear bending machine, servo turret punch, servo press, servo press.
2. GM Series Used for High Speed Spindle
Asynchronous servo spindle motor. From 2.2KW to 250KW, the maximum speed can reach 15,000 rpm, and the precision can reach U level. It has the characteristics of good low speed, fast response and wide constant power range. Matching with many spindle drivers at home and abroad, it can be used for
3. GZ Series Used in NC Turntable
For NC turntable, the accuracy can reach 1.5 seconds, and the diameter can be provided from 90 mm to 4000 mm turntable.
4. GE Series Used for Machine Tool Spindle
As a permanent magnet IPM structure, it can effectively reduce the rotor heating, thus solving the problem of the size change of the shaft heating. With special shafting design, the maximum speed can reach 24 000 rpm.
